1 Gas ironing machine is a new generation of ironing equipment , suitable for all kinds of blankets , quilts , tablecloths and more. Fabric after washing dehydration can be fed into the ironing machine , the machine used in a variety of sizes guesthouses , hotels , hospitals, hostels and fabric dyeing plant and other units .
(2) The introduction of foreign advanced technology, Ø377mm ironing cylinder , integrated United States,Italy and other countries ironing machine , with excellent technology and strict quality control, exquisite craft production , so the machine has a reasonable hot level beyond coefficient, high efficiency ironing , hot out of the fabric flat. Can be comparable with international ironing machine . The machine uses a gear in terms of rotation turn , smooth rotation, low noise , good sealing , safe , reliable, energy saving .
3 The machine uses no speed motor, ironing roller speed range between 0-6m, can be adjusted according to the fabric thickness and temperature condition . The machine reasonable structure, convenient operation, improve work efficiency has a significant effect, is the most advanced ironing machine equipment, welcomed by users.
4 After drying cylinder is rounded, grinding, extrusion stainless steel and galvanized roll body , can ensure that the fabric is not bonded in the baking hot , does not corrode .
5 Gas Supply -side electronic valve device to ensure drying cylinder for gas in the sealed operating condition , it has the most excellent sealing effect.
6 cylinder heating ironing machine , use baking hot area of more than 75 %. Low demand for gas , usually when 3.8kg/cm 2 pressure can be properly ironed.
| 型號 Model | YPR-37725/28/30 | YPR2-37725 | YPR-8025/30 | YPR2-8025/30 |
|
熨平寬度（m） Ironing width |
2.5/2.8/3 | 2.5/2.8/3 | 2.5/3 | 2.5/3 |
|
滾筒數 Roller quantity |
1 | 2 | 1 | 2 |
|
最高燃氣消耗量(CBM) highest gas consumption |
6 | 12 | 3 | 5 |
|
熨平速度(m/min) Ironing speed |
0-6 | 0-12 | 0-6 | 5--15 |
|
電機功率（kw） Motor power |
0.55/0.75/0.75 | 1.5/1.5/1.8 | 0.75 | 1.5 |
|
額定電壓(v) rated voltage |
380 | 380 | 220 | 220 |
|
最高溫度(°C) maximum temperature |
150 | 150 | 150 | 150 |
|
整機重量(kg) Total weight |
1550/1800/1800 | 2000/2300/2400 | 1800 | 2200/2600 |
|
外形尺寸 長(mm) Dimension length |
3500/3800/4000 | 3600/3900/4100 | 3700/4200 | 3700/4120 |
| 寬 Width | 950 | 1440 | 1000 | 2200 |
| 高 Height | 1800 | 1800 | 1320 | 1320 |
|
 |
 |
 |
 |
|
|
|
| E-mail to us:
| |
 |

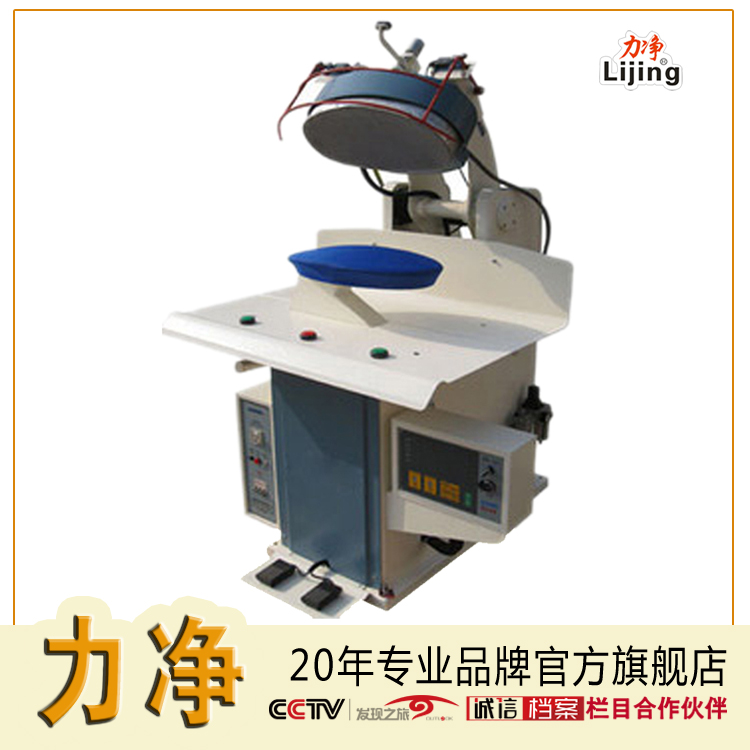

WJT-23 steam heated mushroom topper
